Aerospace connectors with high durability pogo pins ensure dependable connections, reduce maintenance costs, perfect for demanding industries.
Introduction: The true value of aerospace connectors is reliability that cannot afford any mishaps
Aerospace connectors are used in satellites that take off, drones that traverse extreme environments, and multi frequency takeoff and landing jet aircraft. Any connection failure can lead to irreversible engineering and economic consequences. Johoty knows that clients do not pursue good-looking or novel technology. We are more concerned about whether these aerospace connectors can still accurately align after 50,000 thermal cycles? Can stable signal transmission occur from -55℃ to +125℃ without micro arc breakdown or frequency attenuation?
High durability pogo pin or pogo pin connector, with high elasticity, wear resistance, and low impedance characteristics. They are quietly changing the redefinition of reliability by aerospace connectors. This article will analyze their structural principles, practical applications, experimental data, industry standards, etc. Why is this miniature component becoming the preferred connection solution in the eyes of top manufacturers?

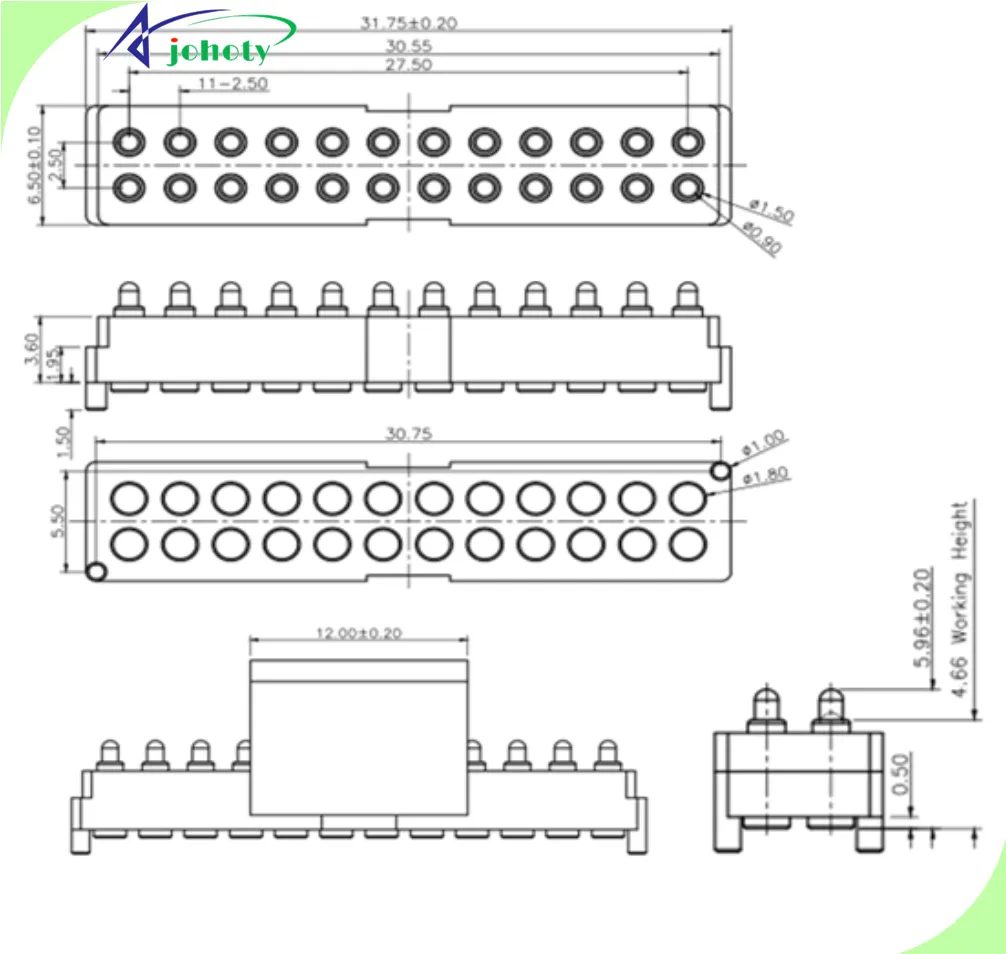

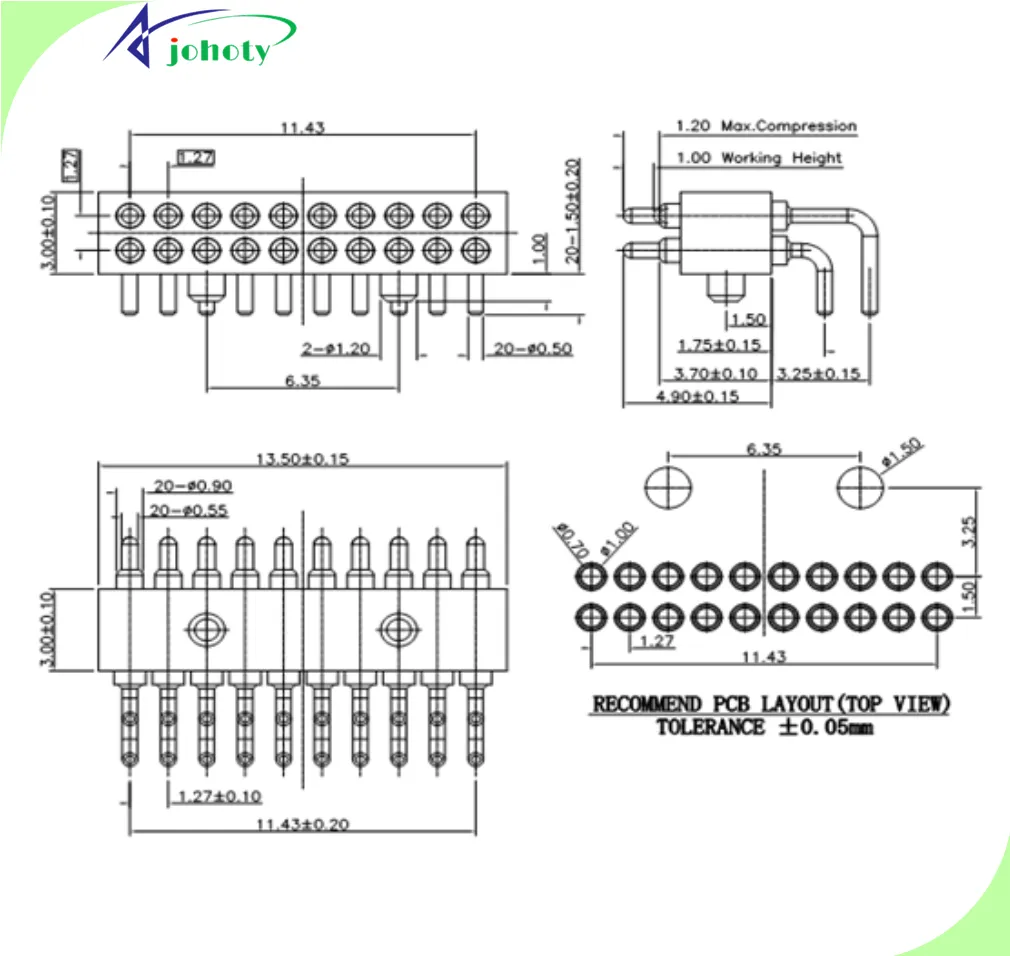

Why is pogo pin suitable for aerospace connectors?
The core of pogo pin is a spring-loaded pin or plunger structure. Compared to traditional metal terminal crimping or welding structures, spring can absorb small displacement deviations. It can effectively avoid contact fracture caused by thermal expansion and contraction, and more importantly:
- Dynamic contact structure of pogo pins can adaptively maintain contact pressure under vibration and impact.
- Spring materials made of stainless steel or gold-plated beryllium copper have a fatigue life of up to 1,000,000 cycles.
- Contact resistance can usually be controlled below 50mΩ or even 10mΩ, and can remain stable even when the number of cycles is greater than 500,000.
These technical features perfectly meet aerospace connectors: high-frequency vibration, high-temperature cycling, repeated insertion and extraction, and extreme space.

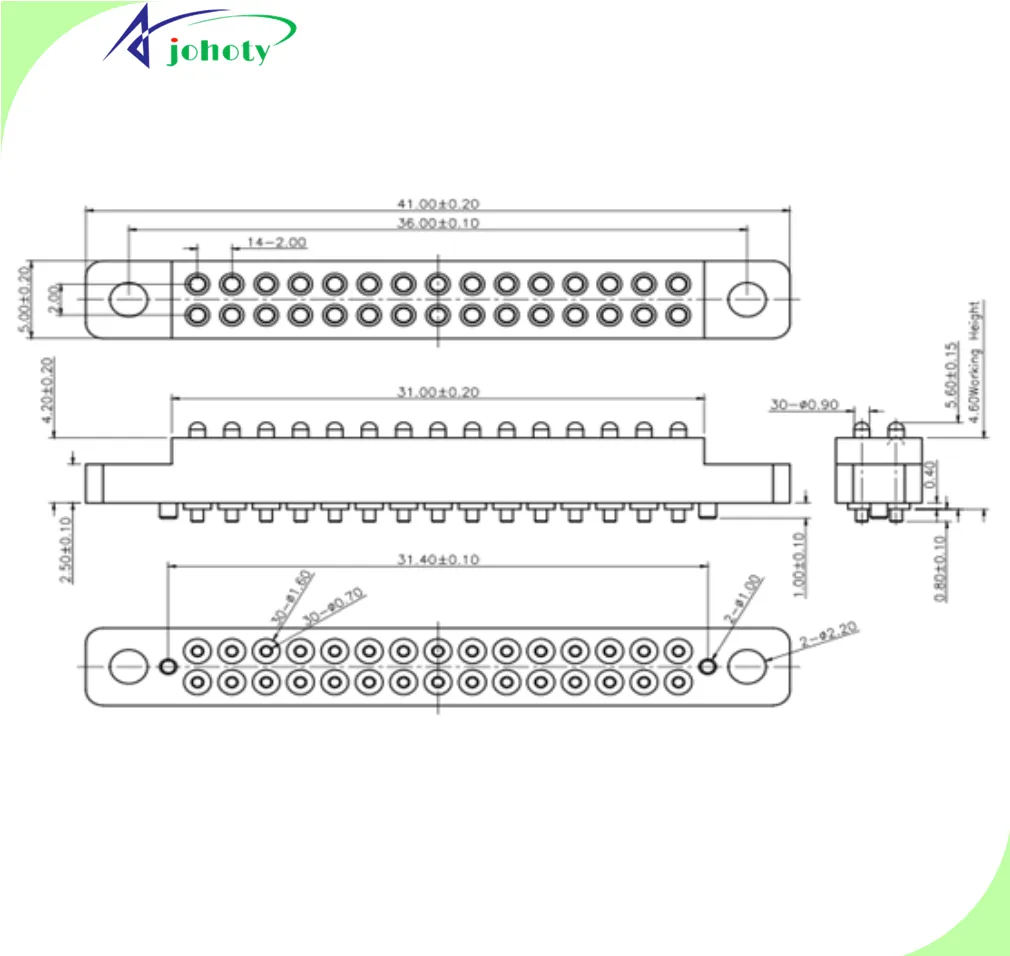

Conventional connectors in aviation applications vs. high durability pogo pins
Aerospace connectors are required for space grade communication equipment, inertial navigation modules, and aircraft cockpit interaction systems. According to French avionics customers, pogo pin is currently the only solution that can achieve high-frequency reliable connection with microstructure.
| Contact Type | Life Cycles（times） | Contact Resistance Stability（mΩ variance） | Working Range | Error Rate（within 100,000 cycles） |
|---|---|---|---|---|
| Welded pin | <1000 | 5~30 | -40~85℃ | >3% |
| Universal pogo pins | ~30000 | 10~40 | -40~105℃ | 0.5% |
| High durability pogo pins | >100000 | <5 | -55~125℃ | <0.01% |

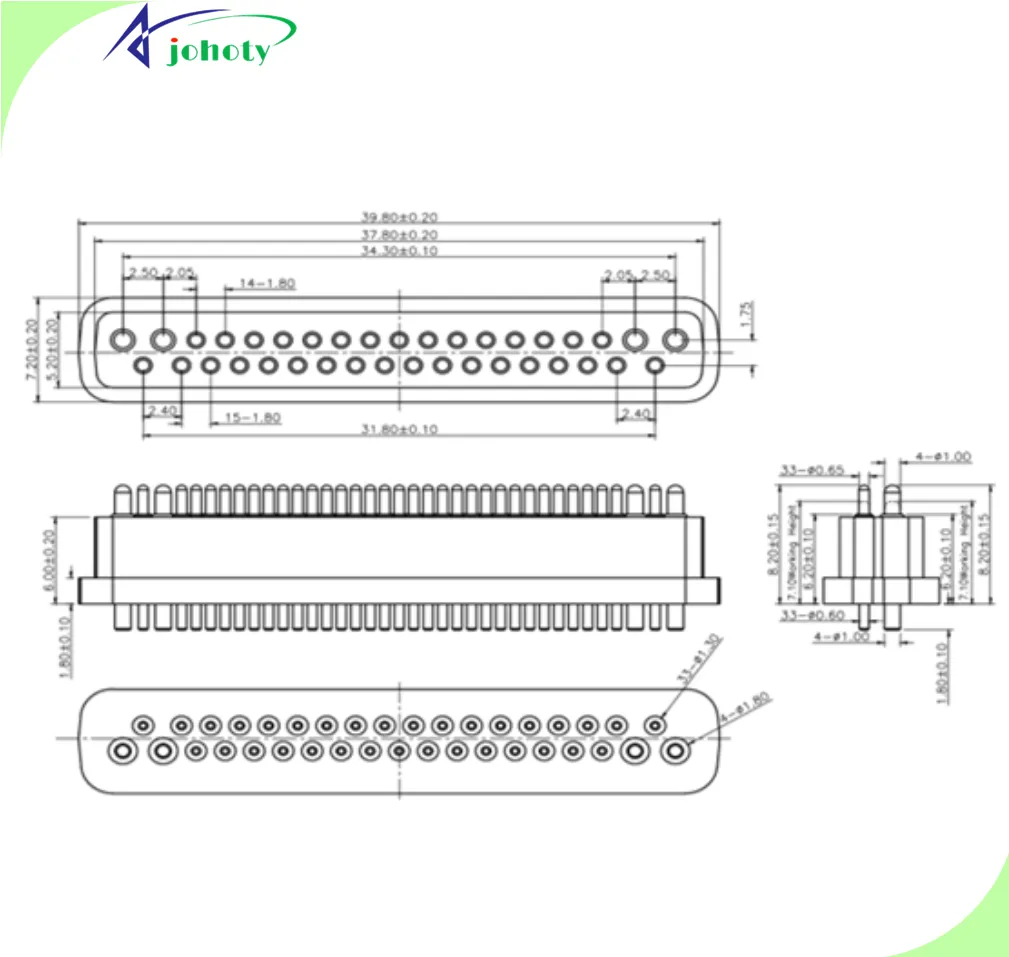

Real challenge of high-frequency data transmission in aerospace connectors is not speed, but continuity
Many engineers mistakenly believe that high speed (Gbps) is the technical bottleneck of aerospace connectors, but it isn’t the case. Due to physical limitations such as spatial EMI, cable length, and power ground noise. What really troubles engineers is often signal continuity. That is to say, micro packet loss, instantaneous impedance drift, and intermittent disconnection during data transmission.
A 5μm gold-plated pogo pin connector with a stable gold gold interface formed on the surface contact layer. Greatly reducing the fluctuation of contact voltage. This is widely applied in the execution of multiple NASA QPL certifications. In various aerospace projects of American clients, the signal channels of pogo pins are mostly plated with thick gold. No bit error occurred in 30,000 thermal cycle tests.

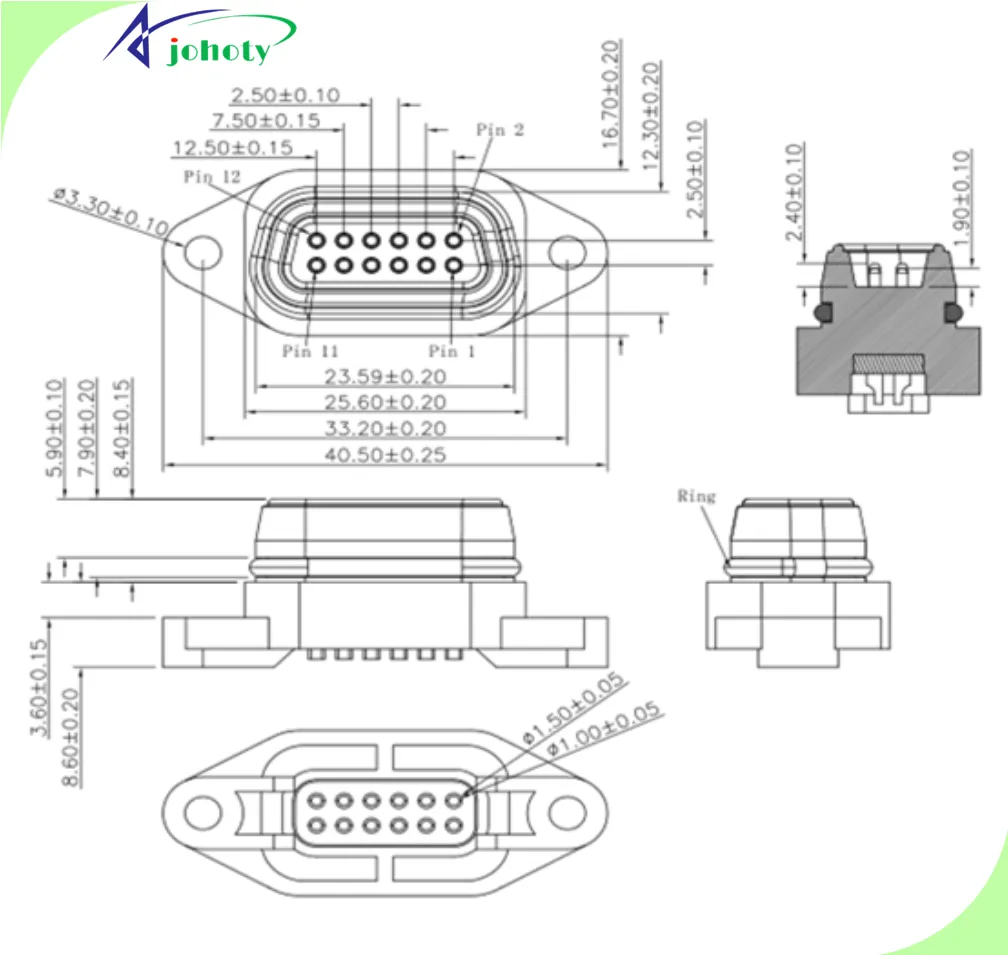

Environmental adaptability testing of aerospace connectors: pogo pin performs outstandingly under extreme working conditions
Aerospace industry customers often require four extreme tests for connectors, including:
Vibration: 5-2,000Hz, continuous acceleration of 10g for 2 hours.
Impact: 50g acceleration, 6ms pulse repetition impact.
Salt spray corrosion: the change of contact resistance shall not exceed 5% under NaCl spray environment for 96 hours.
Hot cycle: 1,000 hot and cold switches between -55℃ and 125℃.
Johoty’s highly reliable pogo pin solution has passed all four tests mentioned above. Keep the complete test report for review. Aerospace connectors are commonly used for wiring in narrow spaces within aerospace composite structures. Through hole pogo pins are easier to assemble and replace than solder cup pogo pins. This can significantly reduce the difficulty and cost of post maintenance for customers.

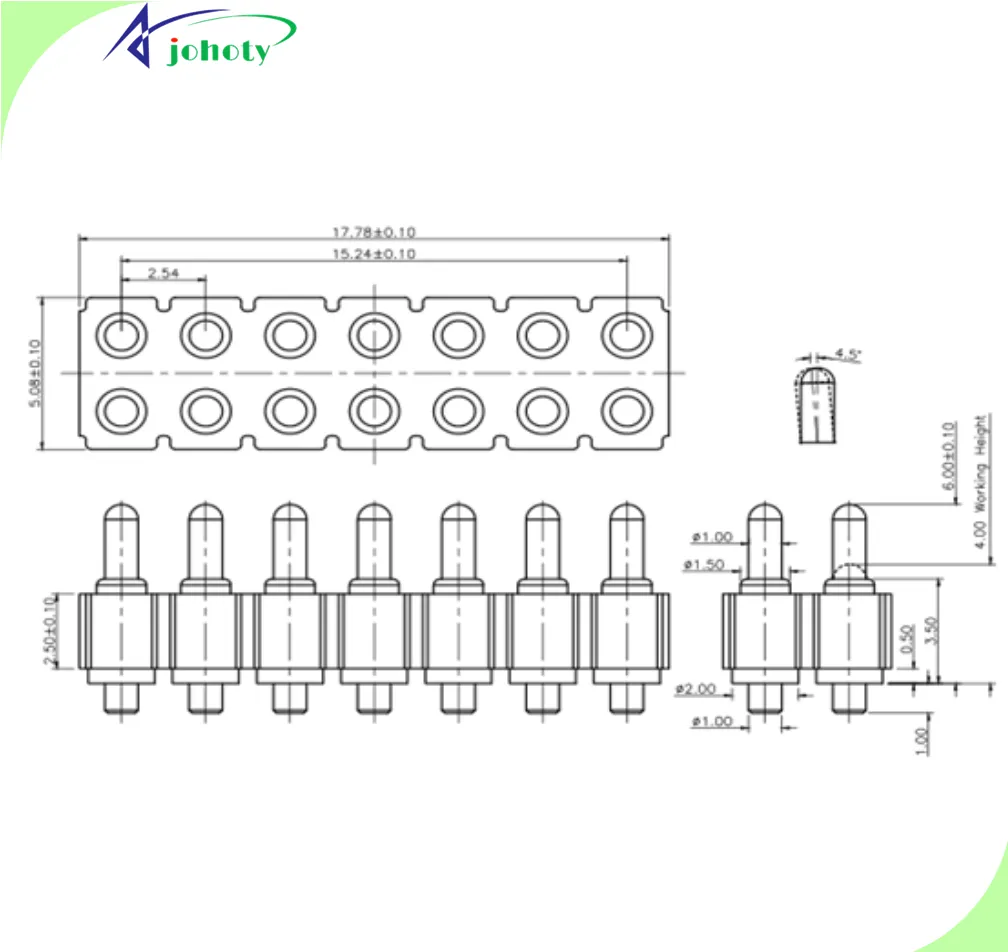

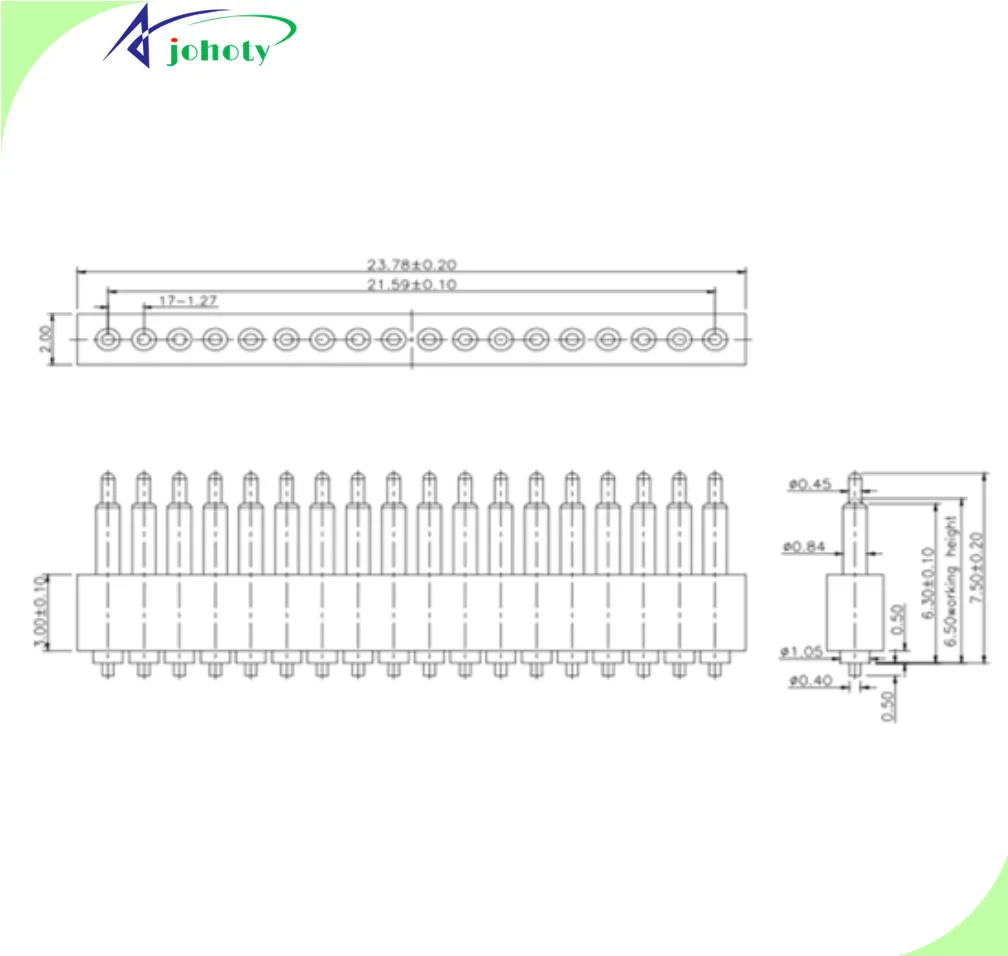

Pogo pin helps aerospace connectors achieve ultimate weight loss
In the aerospace industry, for every kilogram of weight reduction, it may save tens of thousands of dollars in costs for launch systems. Traditional connectors are fixed with screws and wrapped in shielding shells, often weighing over 8g per position. When the high durability pogo pin does not use a metal shell, the unit weight can be controlled below 1.2g. This can definitely effectively reduce the structural redundancy of inter-board connectors.
This design has been applied in multiple unmanned space platforms. And in the guest’s multi rotor reconnaissance unmanned aerial vehicle (UAV) and low orbit satellite system. After adopting pogo pins for the inter board connectors, the overall weight of the machine decreased by 1.7%, and the assembly time decreased by 34%.

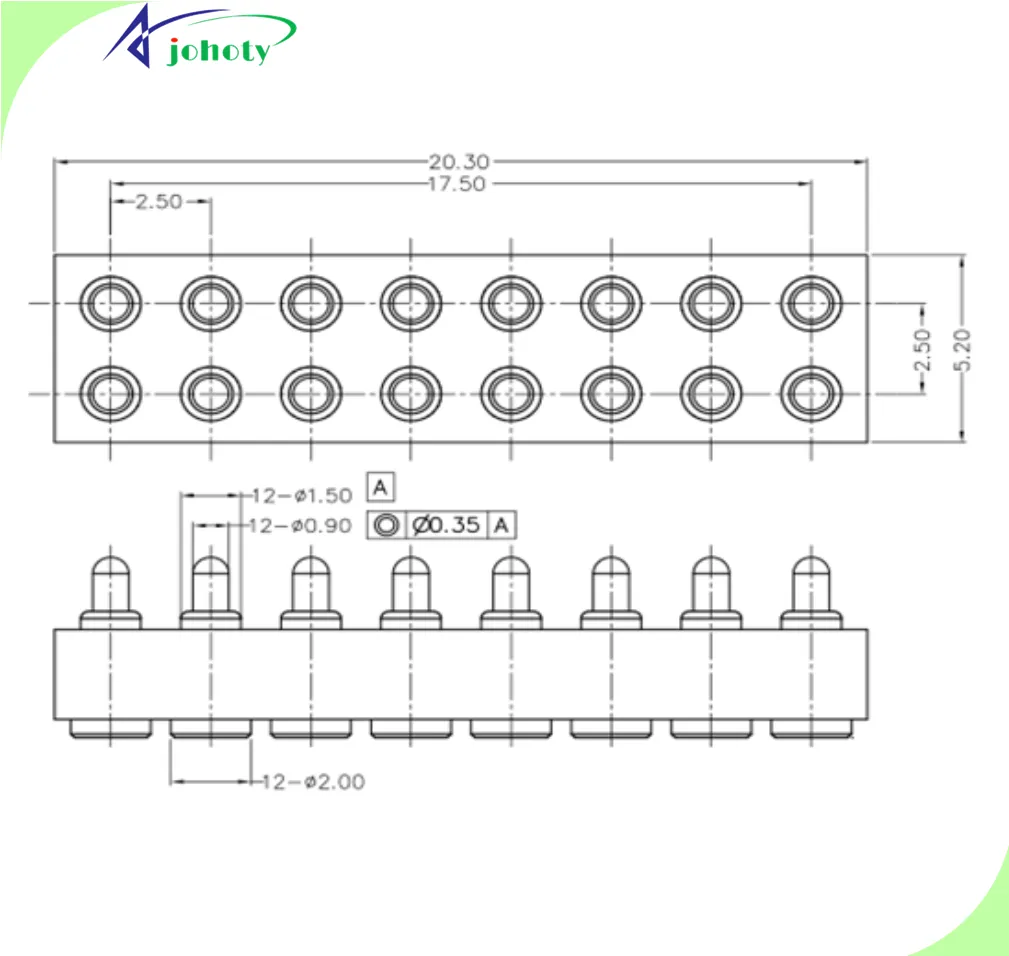

Why do top manufacturers choose pogo pins as the main structure for aerospace connectors?
Modular design is one of the trends in modern aviation systems. The radar module, navigation module, and AI recognition module need to be plug and unplug for quick replacement. However, traditional connectors are irreplaceable due to their welding structure, making the operation and maintenance process cumbersome.
Aerospace connectors using pogo pins achieve the following major benefits:
- Quick plugging and unplugging doesn’t affect the motherboard structure.
- No soldering design to avoid high temperature damage to precision chips.
- Maintain constant elasticity throughout the lifespan without the need for regular calibration.
A French flight control customer has extended its daily maintenance cycle from 60 days to 180 days after adopting Johoty pogo pin connectors. The customer has made a repeat purchase for the tenth time and has provided feedback that a significant amount of operational resources have been saved.

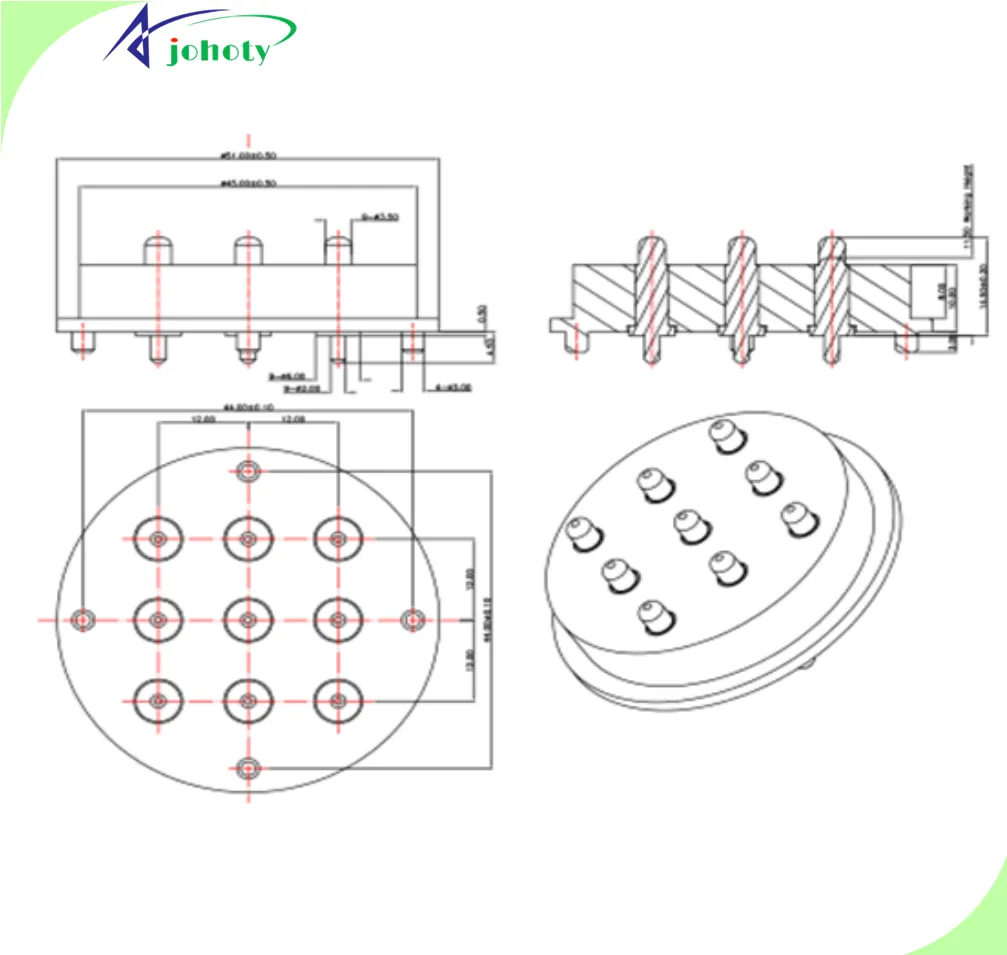

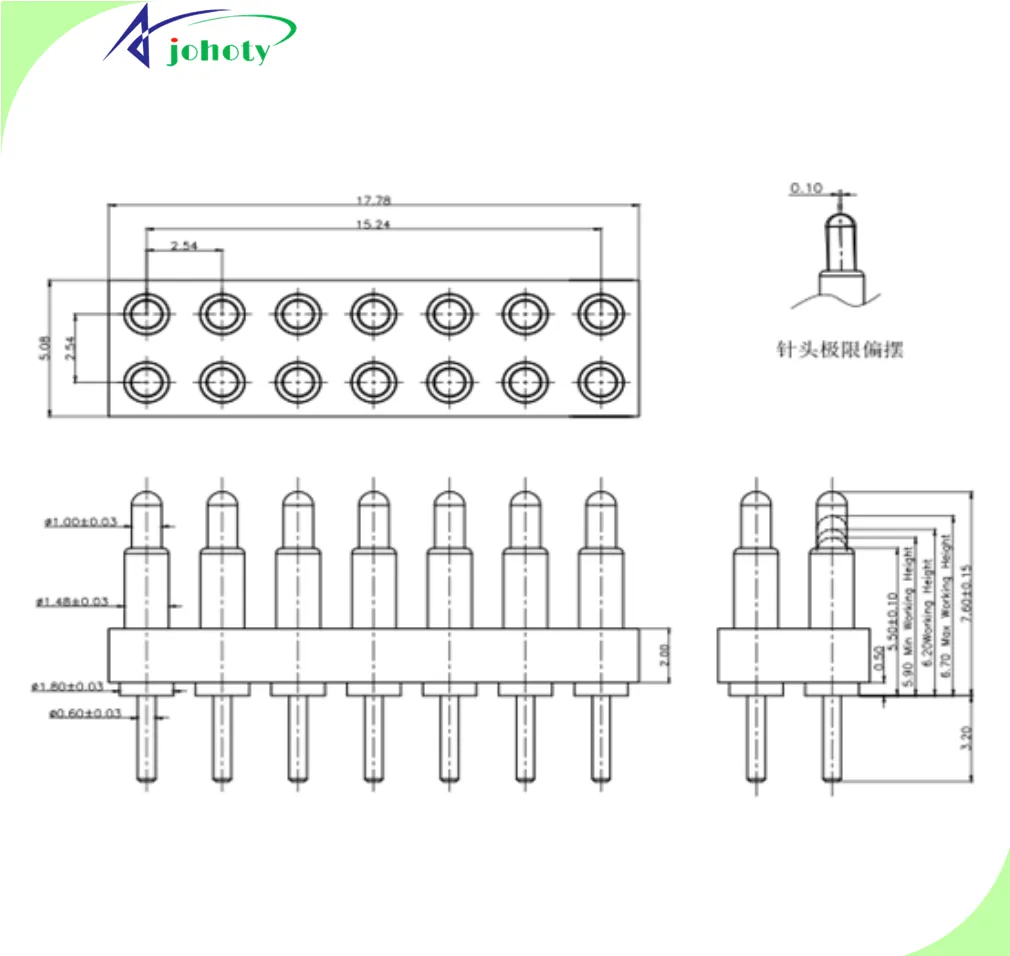

Core advantages of high durability pogo pin aviation connectors
Provide stable electrical connections:
Stable electrical connections are really important for aerospace. The aviation connector with high durability pogo pin commonly uses innovative contact methods for stable and seamless connections. Pogo pins can effectively maintain stable current transmission during high-speed movement or large vibrations. They are not affected by a texturally extreme environment. This stable performance allows the pogo pin connector to continuously provide reliable signal transmission under extreme conditions. Prevent aviation equipment downtime and safety hazards caused by connection failures.
Significantly reduce maintenance costs:
The high reliability of aerospace equipment can ensure safe operation and significantly reduce the frequency of maintenance and replacement of parts. With the long-term durability of aerospace connectors, clients can reduce equipment maintenance costs significantly. Johoty reduced the risk of physical wear and tear when designing these spring loaded connectors. They can withstand more connection cycles, reducing frequent connector replacement. This further saves customers’ costs on repair & maintenance.
Excellent corrosion resistance:
Under high temperature, high humidity, and strong electromagnetic interference, higher requirements have been placed on the corrosion resistance of aerospace connectors. Johoty’s aviation connectors often use gold-plated materials, they have strong corrosion resistance. Alternatively, 5-layer or 6-layer composite electroplating can withstand prolonged exposure to humid environments and chemical corrosion. It can operate stably for a long time under harsh conditions, avoiding performance degradation and equipment failure caused by corrosion.
Strong adaptability and wide applicability:
Unlike traditional connectors, the design of high durability pogo pin aviation connectors is more flexible. They can adapt to the needs of various sizes, shapes, and configurations. With this adaptability, they widely work in aerospace, unmanned aerial vehicles, and satellite equipment. In high-frequency vibrations or extreme temperature differences, these aerospace connectors can provide long-lasting and reliable performance support.
How can high durability pogo pins help airline customers improve signal transmission stability by 67%?
The client is a French developer of large spacecraft main controllers. Their high-density control board frequently experiences occasional data interference after multiple launches. After a rigorous trial run, the client project team introduced the Johoty custom pogo pin connector. We helped our customers improve integrity from 89.3% to 96.4% and reduce the bit error rate to 0.0005%.
The substantial breakthrough in connection reliability is achieved through the following three technological innovations:
- Pogo pins use conical contact tips to increase unit pressure and contact area.
- Spring is fine-tuned with a double wound design, which maintains precise displacement rebound even at high temperatures.
- Change the traditional gold layer to gold-palladium-Rh-Ru multi-coating to improve corrosion resistance.
How do aviation experts evaluate the quality of pogo pin aerospace connectors?
If you are designing connection system for new generation of flight control/communication/detection modules, you can refer to Johoty’s advice:
- Mechanical lifespan: It is required to have no abnormalities after more than 100,000 cycles.
- Contact impedance fluctuation range: <±3mΩ.
- Thermal cycle stability: Maintain stability under repeated changes from 125℃ to -55℃.
- EMI shielding requirement: pogo pins can achieve directional shielding through shell design.
- Space occupation: Unit pin pitch ≤1.27mm.
- Convenience of module replacement: Complete module-level replacement within 30 seconds.
Conclusion: Why has Johoty become the preferred pogo pin partner for high-end customers worldwide?
Johoty has long focused on the reliability design of connections in extreme environments. Provide customized high-durability pogo pins for multiple European spacecraft projects and military unmanned systems in the Americas. All aerospace connectors comply with aviation-grade standards such as MIL-STD, EN, IPC, etc. Johoty is well aware that your project cannot tolerate any probabilistic risks. Johoty provides quantifiable, traceable, and maintainable connectivity guarantees.
Suppose you are looking for aerospace connectors solutions that can be delivered with confidence. Welcome to contact Johoty’s CFT team. You can obtain complete technical drawings, life test reports, and sample making services.
