Industrial Connectors Using Pogo Pins Deliver Unmatched Reliability, Modularity, Precision. Engineers Must See Real-World Application Insights
Introduction:
Industrial connectors are undergoing a profound technological evolution: in high-density, high reliability, and high-frequency environments, traditional designs of industrial connectors are facing unstable contacts, large volumes, and difficult maintenance. Why are more and more engineers turning their attention to pogo pins?
Upgrade demand for industrial connectors is driving the migration of connection technology towards high-frequency response, elastic contact, seismic stability, and small modularity. The elastic design of pogo pins achieves micrometer level contact accuracy and a lifespan of over 100,000 cycles. In automation equipment, testing probes, medical systems, and power tools, it demonstrates advantages far beyond traditional spring pins or board to board connectors.
What kind of performance curve is required for industrial connectors that engineers crave? Can zero delay signals, low contact resistance, and no manual maintenance be truly achieved in complex working conditions? Currently, which mainstream equipment manufacturers in Europe and America have started using pogo pins to achieve product modularization and programmable interfaces?
Don’t ignore this small yet powerful technological trend anymore. Johoty’s pogo pin connector is currently refactoring the engineering definition of industrial connectors. Johoty will delve into the five core advantages and showcase typical application scenarios. Revealing how industrial connectors based on pogo pins truly bring transformative power to engineering design.

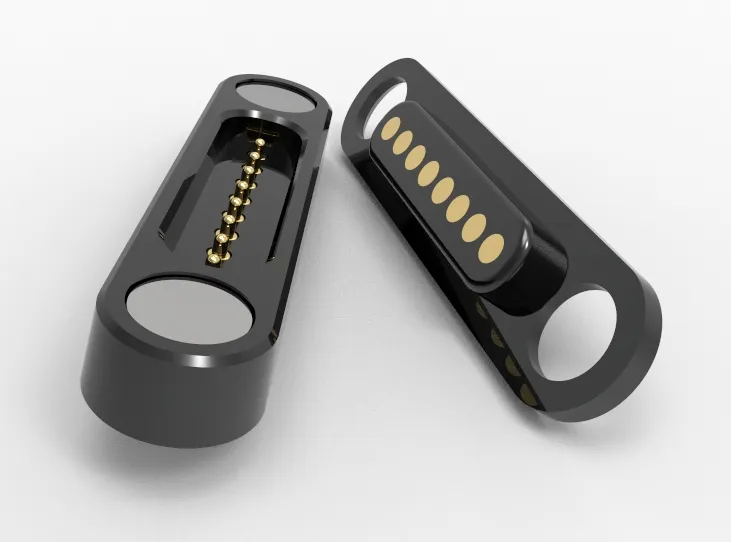

Practical Cases of Pogo Pin Industrial Connectors
Automation equipment module docking: an ideal solution for robot joint connection
In industrial robots, each joint module requires frequent rotation, vibration, and high-frequency docking testing. Traditional industrial connectors are prone to insertion and removal wear and increased resistance. Pogo Pin, with its spring pin design, can achieve 300,000 connection cycles. Contact resistance remains stable below 20mΩ, far superior to conventional metal spring connectors.
In car factory of German customer, 6 axis robot arm adopts a modular design with Johoty’s pogo pin connector. Fast replacement and high-precision calibration have been achieved, reducing mold changing time by 42%. Annual maintenance cost savings exceed $120,000.
Rail Transit/Heavy Duty Equipment: Hardcore Scenarios for Seismic Connections
Rail transit and engineering machinery face harsh extreme vibrations, high humidity, and high temperatures. Traditional industrial connectors often fail due to loose locking and oxidized contacts. In the Pogo pin design, the contacts always maintain an elastic crimping state and enhance their corrosion resistance through gold plating technology.
The onboard control module of Canadian intercity trains uses pogo pins instead of traditional screw locking connectors. The system has operated for over 10,000 hours in -40℃ to +85℃ without any contact abnormalities. At the same time, Johoty can meet the client requiring the EN 50155 railway standard.
Medical industrial instruments: precision scenarios for fast plug electrical interfaces
Surgical robots and high-end imaging systems for medical equipment have extremely high requirements for connection reliability and cleaning convenience. Traditional multi pin connectors have complex structures and are difficult to maintain. The Pogo pin module can easily achieve blind insertion docking and residual insertion and removal force, greatly improving operational efficiency and device safety.
A top hospital in California, USA, has adopted Johoty’s pogo pin solution in its MRI probe replacement interface. They reduced single cleaning and maintenance time to 5 minutes from 30 minutes. And, insertion and removal error rate has decreased by more than 90%. The client told us that it greatly improves the efficiency of medical equipment operation and patient turnover.
Smart factory: an ideal connection solution for replaceable modules and test bench systems
Frequent replacement of testing fixtures and module interfaces is common in intelligent manufacturing factories. New challenges have been posed to the durability and modularity requirements of industrial connectors. The Pogo pin module has advantages such as fast docking, flexible floating, and error compensation. It is suitable for non-fixed position automatic testing applications (ATE).
Shenzhen Semiconductor Packaging and Testing Factory has used our pogo pin test stand in its wafer testing platform. The overall OEE of the equipment has increased by 23%, and the module replacement time has been reduced by 70%. The maintenance cycle has been extended to 2.5 times the original.
Military and Aerospace: The Ultimate Test of High Reliability Electrical Connections
In aerospace and military systems, vacuum, shock, and high radiation require industrial connectors to have top-level stability. You know, pogo pins can achieve miniaturization, high-density packaging, and constant voltage contact. It can use in satellite docking interfaces, aerospace electrical connection modules, etc.
The detection module of French customers has used customized pogo pin connectors in the interface area. The customer requested Johoty to customize to accommodate temperature differences and oscillation conditions at the cosmic level. During 18 month deep space test, the interface maintained a stable impedance of milliohms and operated with zero faults.
Why are traditional industrial connectors difficult to replace pogo pin solutions?
Pin + socket and threaded joints of traditional industrial connectors gradually expose connection fatigue due to their structural rigidity. In high-end industries, it is difficult to cope with frequent plugging, micro displacement, high vibration in harsh dynamic environments. In contrast, the live contact of pogo pin connector has become an ideal alternative solution. The spring-loaded design can absorb real-time micro displacement tolerances of 0.2~0.6mm. It can significantly reduce system failures caused by poor connections.
Johoty laboratory data shows that after 1,000 cycles from -40 ° C to+85°C. Resistance of traditional industrial connectors increases by 12%, while pogo pin remains at ± 3%. In vibration test of 10~500Hz, 1.5mm amplitude, 12 hours, traditional plug contact failure rate was 6.7%, while pogo pin was <0.3%. More importantly, pogo pin achieved an electrical stability rate of 98.7% in 100,000 life tests, far exceeding the 70% benchmark of industrial standard IEC 60512.
Structural elasticity enhances durability of industrial connectors and optimizes the tolerance absorption ability during module docking. Suitable for robot joints, medical equipment quick connectors, and rail transit shock resistant modules. The connection of future industrial systems is evolving from static contacts to dynamic fault tolerance. We believe that pogo pins will become core technology of next generation of industrial connectors.
How to design a stable and durable pogo pin industrial connectors?
Stroke: The first step in lifespan and reliability.
In industrial scenarios, the conventional docking frequency is often over 100,000 times, so it is recommended to control the compression stroke of pogo pins within 60-75% of the total stroke. A too small stroke can lead to unstable contact. If the stroke is too large, the compression force will fail linearly, and the fatigue of the spring metal will significantly accelerate.
If the total stroke is 1.0~3.0mm and the working compression is 0.6~2.2mm. If the total stroke exceeds 2.5mm, it is recommended to use a dual guide column + limit spring composite structure. This can avoid the damage of lateral torque to the spring life.
Current Capacity Calculation: Do not let erosion damage the entire system.
Each Pogo pin must be independently evaluated based on the expected current, using the design formula: P=I² × R. R is the contact resistance, typically ranging from 20 to 50 mΩ. Assuming a current of 1A and a contact resistance of 30mΩ, the heating power per pin is P=I² × R=1² × 0.03=0.03W/Pin
In the array structure, the current distribution must be uniform. Johoty recommends using 2-3 pogo pins in parallel for current sharing when the current is ≥ 1A. Or use high current dedicated pogo pins, coated with thick gold or ruthenium rhodium, with contact resistance controlled at ≤ 10 mΩ.
Spring Force selection: Contact pressure is the fundamental factor for stable connection.
Too little contact pressure can easily cause breakage, while too much pressure can wear down the metal surface. Johoty’s industrial design suggestion: For pogo pins used in electrical signals, it is recommended to have an elasticity of 50-80gf. For power pogo pins, it is recommended to have an elasticity of 100-250gf. For high-frequency signals (>500MHz), it is recommended to use a combination of low elasticity and metal shielding to reduce signal interference.
The recommended tolerance for structural accuracy control is within ± 0.02mm, otherwise overvoltage or undervoltage may occur in the pogo pin array.

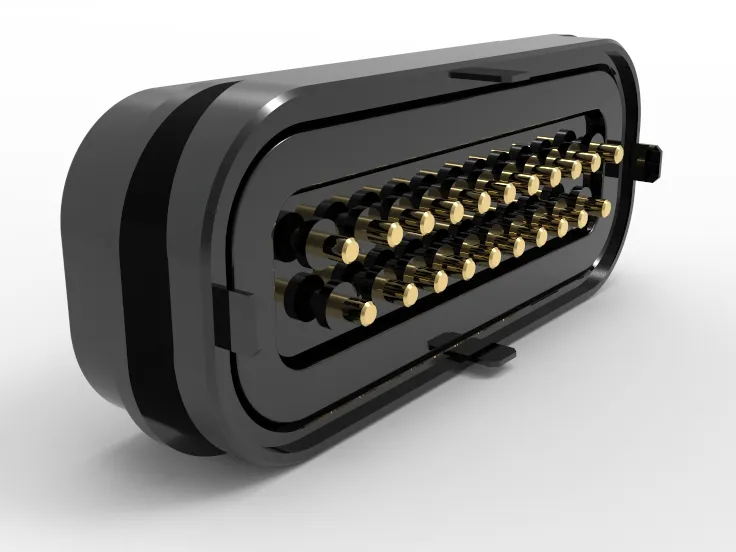

Structure selection: Single pogo pin? Matrix? Circular seat or square module?
According to client’s applications, Johoty recommends the following:
| Application | Proposed structure | Reasons |
|---|---|---|

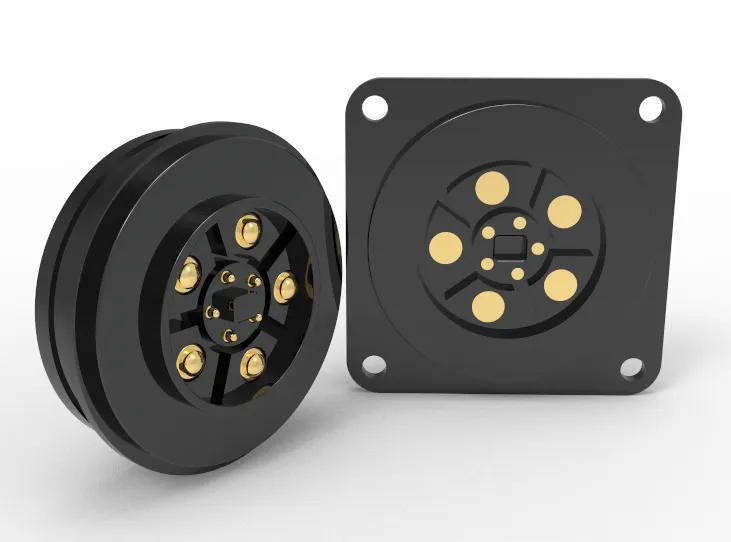

| battery quick change | circular module array pogo pins | supports multiple Pin parallel connections and has strong fault tolerance |

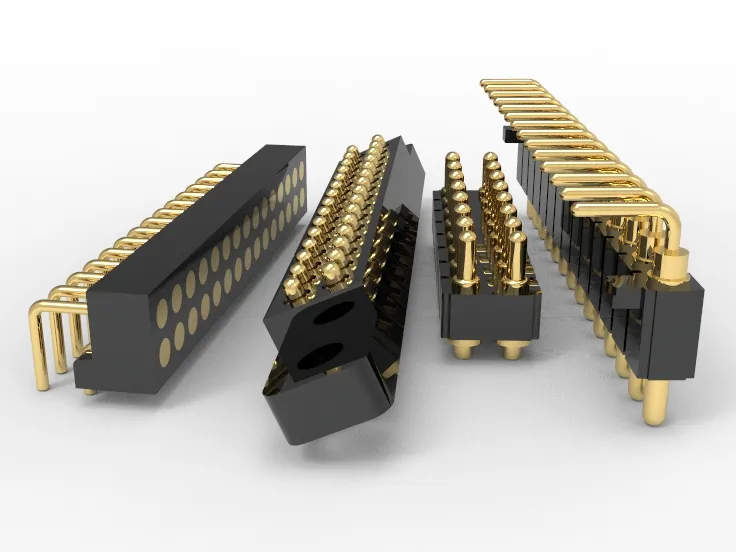

| Industrial testing | square base + precision matrix Pin | high docking frequency, conducive to fixture positioning |

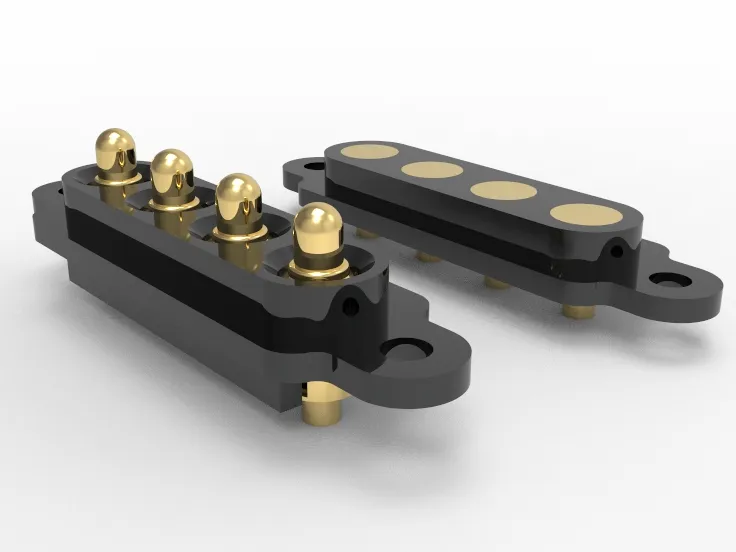

| Power transmission | high current single pogo pin array | strong current distribution + redundant reliability |
| High frequency, RF | shielding structure + elastic fine tuning | ensures impedance continuity and grounding integrity |
https://johoty.com/product/pogo-pin-connector/4-pin-connector

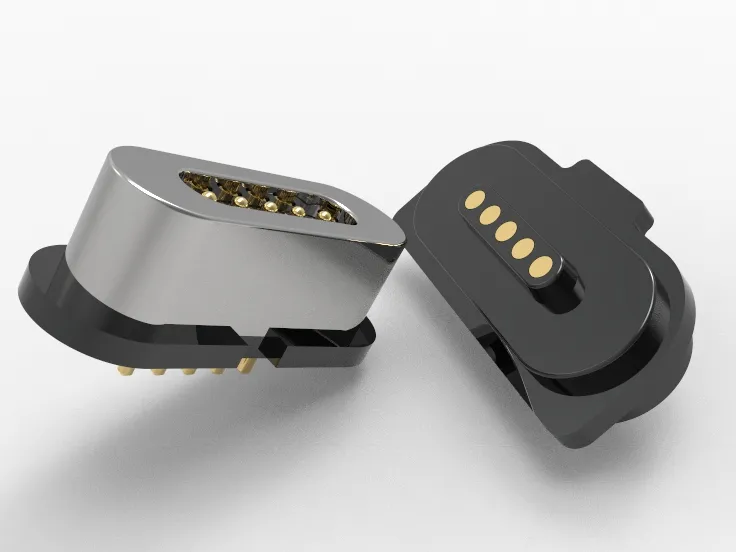

5 key parameters for selecting correct pogo pin industrial connectors.
Current carrying capacity vs stroke life: If clients requires a single pogo pin to carry a current of ≥3A, with a spring force higher than 120gf and barrel diameter ≥1.2mm. At the same time, it is designed with 4-pieces structure that has a lifespan of >30,000 insertions and removals. Johoty always verifies stroke effect for 1.5mm or 2.0mm on resistance and thermal accumulation through FPC precision simulation. We will request to ensure pogo pin connector performance does not degrade.
Terminal material vs surface treatment: Using BeCu barrel with gold plating ≥ 30μ” can significantly reduce contact resistance to <50 mΩ. Suitable for industrial applications with high signal integrity requirements. If used in corrosive environments, Johoty recommends a composite coating of palladium nickel alloy and gold. Compared to single-layer gold plating, its corrosion resistance is increased by >3 times.
Assessment of insertion and extraction frequency: For automatic testing fixtures, it is possible to be inserted and removed >200 times a day. We recommend using high elasticity steel springs and ball guide structures. Johoty’s high-frequency durability experiment showed contact resistance of ordinary spring increased by 40% after 10,000 cycles. But our patented wear-resistant structure still maintains <10% fluctuation.
Installation and alignment tolerance design: Johoty provides a self-guiding structural connector with a tolerance of ±0.15mm. It can accommodate modules that can still be stably docked at a tilt of ±5°, greatly improving assembly efficiency and reliability. If you need contact within ± 50° range, we recommend a ball head design.
Technical support collaboration: Johoty engineering team and CFT team can complete prototype matching within 24 hours. Assist clients in verifying industrial connectors through 3D models and ANSYS simulations. Clients can clearly understand thermal/mechanical performance under actual working conditions, shortening project cycles by up to 30%.
Conclusions: The infinite possibilities of Pogo Pin Industrial Connectors
Pogo pin industrial connectors showcase high-frequency plug-in life, stable electrical performance, and flexible structural configuration. Industrial systems are rapidly developing and modularizing, and they are becoming the preferred connectivity solution in core areas. Including industrial automation, testing fixtures, robot modules, rail communication, etc.
Compared to traditional solutions, pogo pin based industrial connectors are more suitable for complex working conditions with high vibration, high density, and multiple modules. It can significantly improve system maintenance efficiency and overall reliability. Johoty focuses on providing engineers with customized industrial connectors for travel, current, material, and structure. Our flexible solutions can accelerate the implementation of projects for most customers.
In the process of industrial intelligence, every connection point is worth redefining. Johoty pogo pin industrial connectors aren’t only just signals, but also the future of industry. Contact Johoty immediately and let pogo pin industrial connectors inject true intelligent connectivity into your system.
