Introduction: How does the right angle pogo pin change trust in drone missions?
Right angle pogo pin often works in drones. However, any unstable power supply of the drone may result in a crash, data loss, or damage to expensive equipment. Common plug-in connectors are prone to poor contact during vibration, impact, and temperature changes. After dealing with drone customers for a long time, it was found that common problems include: how to ensure stable energy supply, reduce downtime for maintenance, and extend equipment life within a limited volume?
Johoty’s right angle pogo pin provides more reliable energy transfer through its low profile design and lateral force application. Its working principle seems simple. However, in repeated experiments and actual tests, it has demonstrated stability far beyond traditional connectors. It can easily withstand 50,000 cycles of plugging and unplugging. The contact impedance can be maintained below 15 milliohms, and the current transmission fluctuation is less than 2%.
We can help our clients’ drones maintain continuous power supply during high-frequency missions and extreme weather conditions. As a result, customers in the precision industry have begun to turn to this low profile right angle pogo pin. It uses minimal mechanical impact to provide customers with products in exchange for maximum energy stability.
What are the geometric advantages of right angle pogo pins in unmanned energy transmission?
In a narrow unmanned aerial vehicle cabin, space allocation determines the degree of design freedom. Traditional direct insertion pins require vertical space. The height of the drone’s body is limited, and when equipped with multiple sensors and battery modules, the space is extremely tight.

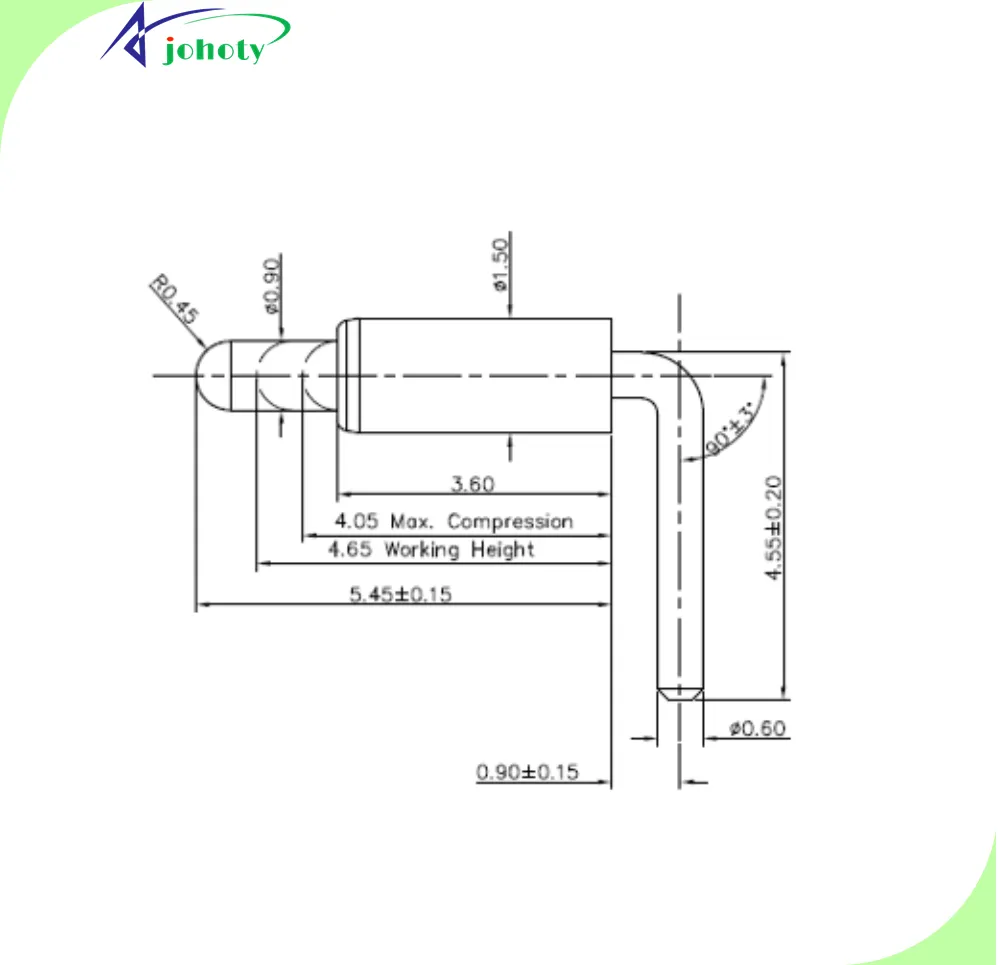

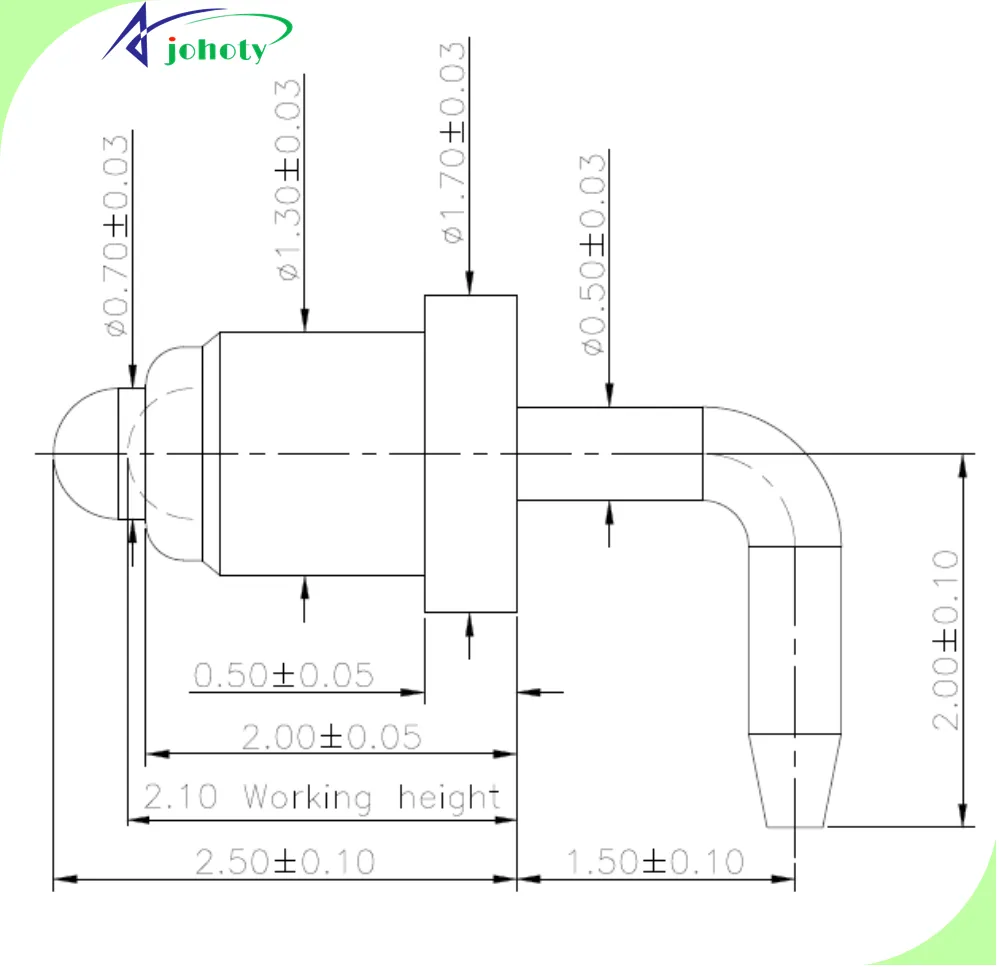

The right angle pogo pin converts the electrical contacts into a 90° horizontal layout. Reducing vertical occupation, reliable docking can be achieved with a height of only 1.80mm to 2.50mm. This geometric advantage is equivalent to flattening the power channel and releasing more space in a limited space.
Johoty’s German customer feedback: The drone power compartment using right angle pogo pins saves 27% of vertical space compared to traditional pin insertion solutions. The overall heat dissipation efficiency has been improved by about 18%. These seemingly small geometric differences are extremely important in long-term flight and load calculations. They can directly translate into extended battery life and improved lifespan of electronic modules.
How can the stability of right angle pogo pin reduce UAV downtime?
Drones often have to cross strong winds, temperature differences, and vibrations during inspections, surveys, or search and rescue operations. In vibration testing, the fluctuation amplitude of contact impedance of conventional plug-in interfaces can reach over 30 mΩ.
Johoty often designs our right angle pogo pins based on lateral forces and multi-point contact. We combined the working stroke with the conductive surface, and in the 20G vibration test, the resistance fluctuation was still below 5 milliohms.
A comparative experiment on 350 industrial drones showed UAVs using right angle pogo pins reduced mission interruption rates by 41%. In other words, for every 10 flights, there will be 4 fewer returns or shutdowns caused by unstable energy supply. Customers who rely on drone operations will have fewer maintenance hours and higher attendance rates.
How can right angle pogo pin maintain energy supply in extreme weather?
Drone missions often face extreme temperature differences: up to 65℃ in deserts and as low as -35℃ in polar regions. In these environments, metal expansion and contraction can easily cause contact loosening.
Johoty’s right angle pogo pin is a gold-plated spring loaded pin. Combined with low profile lateral travel, the thermal expansion displacement of the metal is uniformly absorbed. After 500 cycles from -40℃ to+85℃, the change in contact impedance does not exceed 3%.
In addition, we conducted experiments with our customers and ran continuously for 120 hours at 95% humidity. Our right angle pogo pin still maintains stable power supply with no obvious signs of oxidation. Unmanned aerial vehicles often require long-term hovering monitoring, and stability under such extreme conditions is crucial. The reliable climate adaptability allows many customers of Johoty to avoid frequent interface changes due to environmental changes.
Can the right angle pogo pin extend drone’s lifespan?
The core cost of drones lies in the battery and flight control module, and frequent unstable power supply is most likely to cause battery overcurrent and circuit damage. Johoty often designs right angle pogo pins with contact impedance as low as 10mΩ according to customer requirements. This can help customers reduce the impact of current pulses and make battery charging and discharging smoother.
Johoty collaborated with American clients to conduct a three-year tracking experiment on 200 drones. The battery life of using this right angle pogo pin has been extended by an average of 23%, and the repair rate of flight control motherboards has decreased by 19%.
In other words, this small structural optimization has helped many customers save on large-scale post-maintenance costs. Our ability to extend lifespan means that customers receive a higher return on assets.
Data security and task assurance for the right angle pogo pin
Drones can transmit energy and undertake data exchange tasks. Any unstable energy supply may result in data loss or transferring interruption. Johoty’s right angle pogo pin ensures a smooth voltage curve through low impedance contact. It can reduce the risk of power failure during the memory writing process. In the actual testing of 1,500 agricultural drones with German customers, the data loss rate decreased by 78%.
By adopting our right angle pogo pin, the reliability of research data and commercial tasks has significantly improved. Compared to traditional interfaces, the right angle pogo pin makes drones a more reliable production tool. It is not just an experimental platform.
Conclusion: Contact Johoty immediately to learn about the application of the right angle pogo pin
Right angle pogo pin is not simply a spring loaded pin, but a stable guarantee for the energy and data channels of the drone. It uses a few millimeters of geometric optimization in exchange for thousands of hours of continuous power supply and task trust.
For Johoty’s customers, this means less downtime, longer lifespan, and more reliable data. Behind every flight mission, what truly determines the success rate is not only the flight control algorithm and battery capacity, but also the stability of the power supply chain.
Johoty has long been dedicated to the research and application of low profile pogo pins. If your project is facing challenges such as unstable energy supply, limited space, or shortened lifespan, please contact Joy immediately. You will see firsthand how to use the right angle pogo pin to make drone flight safer, more stable, and trustworthy.
