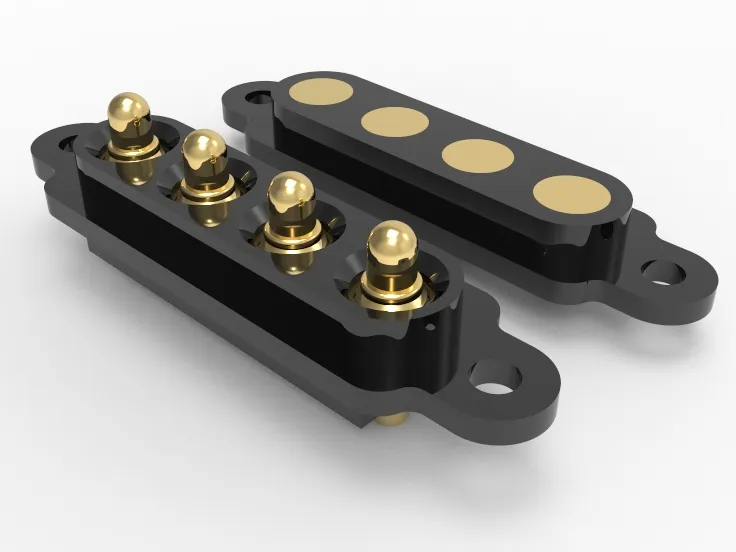

4 pin pogo connector has miniaturized single or double-row layout and fine pitch to save space. Stainless steel springs are gold-plated, providing low resistance for efficient signal transfer with low current and voltage. 8 installations, up to 200,000 cycles of lifespan, high reliability and cost-effectiveness. Johoty provides complete customization, supports customers’ personalized size, stroke, current, force, resistance, installation method, etc.

Features:

Miniature design, flexible shape, save space.
High-reliability spring can match vibration.
Efficient transfer of low voltage, small current.
Long lifespan meets long-term industrial use.
8 types of installations for different PCBs.
Customization enhances product differentiation.

Get A Free Quote

Catalog

4 Pin Pogo Connector, Pitch: 1.27~1.99 Description

Product Info: 4 pin pogo connector has a very small volume, excellent spring force performance, and precise electrical contact. It can transfer high-frequency signals based on its low impedance. High corrosion resistance, high conductivity, high durability, low impedance, it can provide flexible layout. Suitable for smart wearable devices, medical equipment, etc.

Features: Miniature design, high reliability springs, low contact impedance, durability, and plug-in life. High precision manufacturing, compatibility with high-frequency signals and power supplies, environmental resistance, flexible layout and customization.

Solving Problems: High density layout with limited space and highly reliable electrical contacts. Durability of multiple plugging and unplugging, compatibility with high-frequency signal and power transfer. Stability in harsh environments, compatibility with production processes and assembly. The traditional connection lacks flexibility and balance cost and efficiency.

Specifications: Pins 4pcs, pitch 1.00~1.99mm, stroke 0.50~1.70mm, plunger length 3.05~8.00mm, plunger diameter 0.84~2.60mm, shape DIP, solder-cup SMT, right angle, etc. Voltage ≤48V, current 0.1~3.0A, force 15~90gf, lifespan <200,000 cycles, -55 ℃~+125℃，resistance ≤50mΩ， IP65, IP67, IP68, EMI, etc.

Applications: Smartphones and tablets, wearable devices, VR/AR, Portable medical devices, implantable and wearable medical devices, diagnostic equipment. Industrial robots, PLC and sensor systems, data centers and servers, wireless charging and base station equipment. EV, ADAS, Car entertainment and navigation systems, aviation equipment, military equipment, smart homes, sensor nodes and gateways, portable IoT terminals.

Industries: Consumer electronics, healthcare, new energy and semiconductor R&D, industrial automation, communication, IoT, automotive, aerospace, etc.

Benefits: Save space, optimize design, improve equipment performance, enhance reliability and durability. Reduce overall costs, provide flexibility and customization, meet strict environmental requirements for compatibility, and meet multiple functional requirements. Help customers create more attractive end products and win competitive advantage. Reduce customer complaints and after-sales costs caused by connector quality issues. Accelerating product launch time helps customers achieve goals and meet demand for green supply chains.

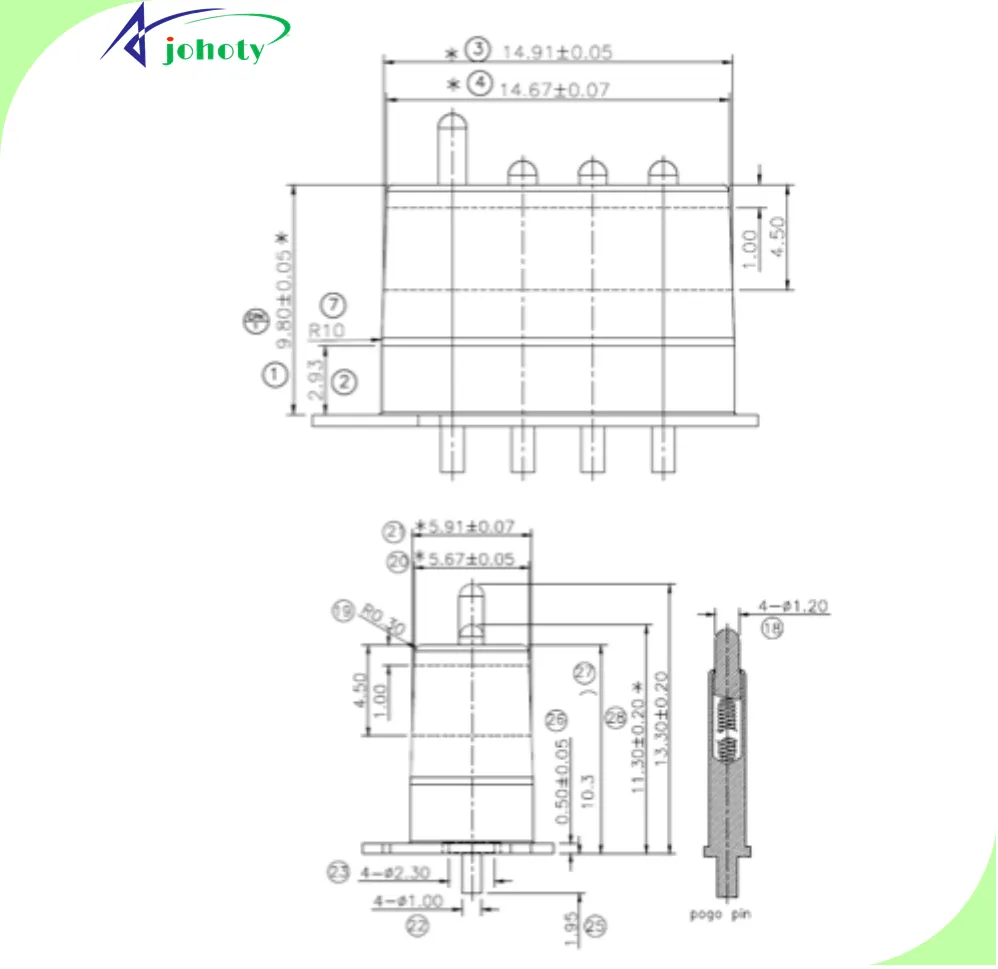

4 Pin Pogo Connector, Pitch: 1.27~1.99 Data Sheet

Parameter	Value Range
Product Name	4 pin pogo connector, spring-loaded pin, 4 pin connector, pogo pins, pogo pin connector.
Number of Pins	4 pins
Configuration	Single-row / Double-row
Connector Type	Spring-loaded
Material	Brass, Phosphor Bronze, Copper, Stainless Steel, Custom.
Plating	Gold, Nickel, Silver, Pd, Pt, Ru, Rh, Composite Electroplating for extreme conditions, Custom.
Color	Black, Gold, White, Custom.
Length	4.40 mm – 15.07 mm, Custom.
Width	2.00 mm – 7.60 mm, Custom.
Height	1.60 mm – 15.25 mm, Custom.
Pogo Pin Pitch	1.00 mm – 1.99 mm. Custom.
Working Stroke	0.50 mm – 1.70 mm, Custom.
Spring Force	15~90 gf, Custom.
Durability (Life Cycle)	≥10,000 cycles, up to 200,000, Custom.
Current Rating	0.1 A – 3.0 A per pogo pin, Custom.
Voltage Rating	≤48 V, Custom.
Contact Resistance	≤50 mΩ, Custom.
Insulation Resistance	≥100 MΩ
Dielectric Withstanding Voltage	500 V – 1000 V
IP Rating	IP40 – IP67, IP68, Custom.
Magnetic	Yes, customized waterproof magnetic male and female, or plug and socket.
Flame Retardant Rating	UL94 V-0
Operating Temperature	Normal -40°C to +85°C, special -55°C to +125°C, customized up to +250°C.
Storage Temperature Range	-55°C to +125°C
Humidity Tolerance	≤95% RH (non-condensing)
Salt Spray Resistance	24-96 hours
Mounting Type	SMT, Through-Hole, Right Angle, Solder-Cup, Dual-head, Custom.
PCB Hole Size	0.4 mm – 1.0 mm
Solderability	Lead-free, Reflow, Wave
Standards	RoHS, REACH, UL, CE, ASTM, ISO
Packaging Type	T&R (Tape & Reel), Tray, Bulk, PE bag, Custom.
Quantity per Package	500 – 5,000 pcs
