Spring Loaded Pogo Pins, L 10.00~50.00 mm, Effective Custom

Spring Loaded Pogo Pins, L 10.00~50.00 mm, Stable performance

Spring Loaded Pogo Pins, L 10.00~50.00 mm, Low contact resistance

Spring Loaded Pogo Pins, L 10.00~50.00 mm, Compact installation

Spring Loaded Pogo Pins | >10mm 8A 1μm Au | PCB THT

Spring loaded pogo pins achieve stable mechanical contact and efficient signal transfer through spring and PCB through-hole structure. Gold plated brass, used for smart wearables, etc. Johoty provides fully customized, cost-effective, professional services.

Features:

Minimize concentricity and travel error.
Low resistance, high conductivity, lossless transfer.
High mechanical & electrical lifespan, corrosion-resistant.
Perfect match between moderate travel and elasticity.
Maintain stability under extreme temp and humidity.
Perfectly customized plunger shape, length, and size.

Get A Free Quote

Catalog

Description of Spring Loaded Pogo Pins

Spring loaded pogo pins, Suitable for plug-in PCB through-hole connections. Travel accuracy ± 0.05mm, supports customized length >10mm. Carrying a current of up to 50A, with a contact resistance as low as 10 mΩ, and a specially designed spring force of up to 5gf. >10,000 cycles of mechanical lifespan, stable transmission of high-speed signals (≥ 5Gbps). Compatible with multi-layer PCB boards and non-standard layouts, priced as low as $0.10, customized and shipped within 2 weeks. Meet electrical connection and structural requirements in industry, scientific research, and system integration.

Datasheet of Spring Loaded Pogo Pins

Parameter	Specification	Description
Overall Pogo Pin Length	≥10mm, custom	length after PCB insertion
Mounting Type (Tail Pin)	Through-hole (THT)	Direct PCB hole insertion
Hole Diameter (PCB)	0.30–3.00mm, custom	PCB via diameter range
Plunger/Barrel Diameter	≥0.20 mm, ≥0.50 mm, custom	Plunger tip contact area
Travel (Compression)	≥0.10 mm, custom. Click: More Catalog	Working compression distance
Spring Force	≥5 gf at low current, custom	Force during working stroke
Current Rating	0.1–50.0A @20mΩ, custom	Continuous current capability
Contact Resistance	≤50mΩ, >10mΩ, custom	Typical contact resistance range
Material	Copper Alloy, SUS 304/316, + Gold Plating	Pogo pin and surface material
Operating Temperature	–40℃ to +85℃, –55℃ to +125℃, custom	Recommended ambient temperature range

Get a Free Quote for Spring Loaded Pogo Pins

Johoty’s spring loaded pogo pins, reliability and precise connection effectively prevent poor contact and extend life cycles. Compact design and high conductivity provide stable and efficient solutions, optimize equipment performance, enhance overall value.

Get A Free Quote Now

Products Categories

Pogo Pins for PCB Testing, Charging, and SMT Use

Spring Test Probes

Spring Loaded Test Probes

Through Hole Pogo Pins

SMT Pogo Pins

High Current Pogo Pins

Double Ended Pogo Pin

Solder Cup Pogo Pin

Right Angle Pogo Pin

Threaded Pogo Pins

Pogo Pin Connector Proven Designs Boost Innovation

Magnetic Connector

2 Pin Connector

3 Pin Connector

4 Pin Connector

5 Pin Connector

6 Pin Connector

7 Pin Connector

8 Pin Connector

10 Pin Connector

12 Pin Connector

Pogo Pin Connectors (≥14 pins)

Get A Free Quote

Applications of Spring Loaded Pogo Pins

Automated testing platform: Conduct periodic electrical connection testing on functional modules of deep groove structures. Vertical limit space for industrial control motherboards, fixtures, complex backplane interfaces, etc. Avoid traditional probes being unable to make deep contact.

Quick plug verification of electric tool module: supports contact structure testing with high stroke impact resistance. High durability substitute connectors for interfaces of high vibration modules such as hammers and drills that are repeatedly plugged and unplugged, and subjected to electrical testing.

Compensation scheme for contact point pressure of medical imaging equipment: ensuring long-term stable conductivity. Maintainability testing points for CT, X-ray, and MRI peripheral auxiliary boards. Requires a large stroke and stable elasticity to compensate for the effects of thermal expansion and contraction.

Elastic connection of BMS module terminals for new energy vehicles: deep battery slot wiring, cross shell connection or through insulated plastic parts. Has high compression ratio and arc resistance performance.

Aerospace high-frequency assembly and disassembly maintenance system: non-welded connection points for electrical connections or high seismic environments. Ground detection of airborne equipment, dynamic monitoring interface for encapsulated internal modules.

Industrial robot gripper replacement interface: high-frequency plug-in terminal block. Fast switching of signals/power from different end effectors requires high elastic contact. Traditional hard connections have high maintenance costs.

Wearable device aging testing platform: Conduct non-destructive electrical testing on deep hole shells. Verify the functionality of electrodes embedded in thick shell materials to avoid misjudgment or rework.

Charging pile module level detection interface: large tolerance compensation and stable plugging and unplugging life. Automatic tooling inspection for components with differences in size between American and European standards, compatible with different supply chain tolerances.

Transfer point of signal circuit for heavy industry equipment: design of electrical contacts for deep well bolt channels. The connection design of mining machines, presses and other components that require probes to penetrate deeply without affecting structural integrity.

Non permanent contact points of laboratory grade precision instruments: prevent micro probes from bending or insufficient contact. For internal board testing positions of spectrometers and oscilloscopes, long stroke spring loaded pogo pins are preferred to ensure consistency.

Maintenance port for rail transit signal system: deep hole elastic access design for enclosed cabin. Rapid detection of control panels inside enclosed compartments without the need to disassemble multiple structural components.

Electrical investigation of military radar systems: capable of maintaining conductivity even in non-linear connections. The module inspection port with waterproof shell and metal packaging requires spring loaded pogo pins to be insertable and maintain stable elastic contact.

Click: More Catalog

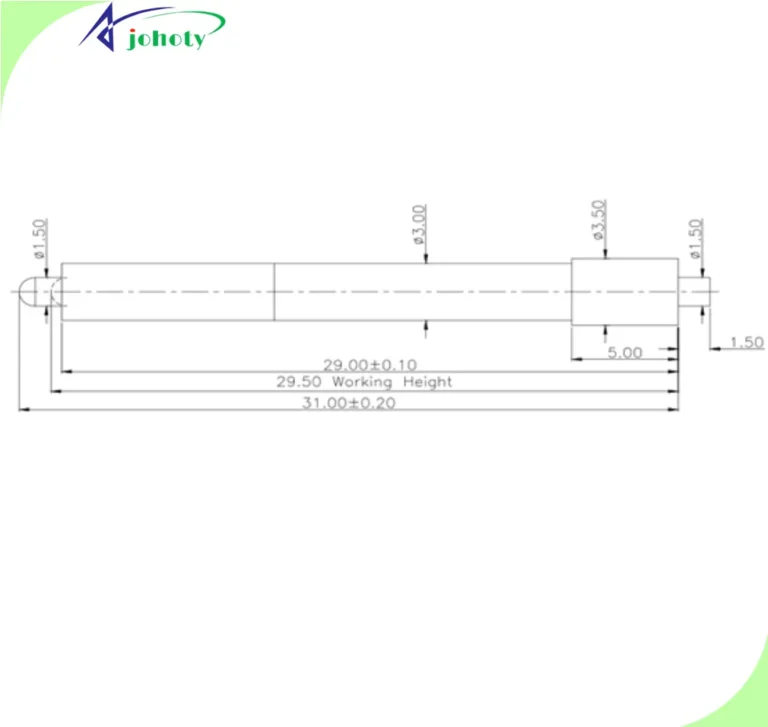

Drawings of Spring Loaded Pogo Pins

Spring Loaded Pogo Pins - Pogo Pin - APC0401-13169

Spring Loaded Pogo Pins - Pogo Pin - APC0401-35506

Spring Loaded Pogo Pins - Pogo Pin - APC0401-30347

Spring Loaded Pogo Pins - Pogo Pin - APC0401-13309

Spring Loaded Pogo Pins - Pogo Pin - APC0401-32489

Spring Loaded Pogo Pins - Pogo Pin - APC0401-37382

More Information

Johoty’s Services of Spring Loaded Pogo Pins

Sampling spring loaded pogo pins:

Full process engineer led: After the customer provides drawings or application scenario explanations, feasibility analysis and packaging confirmation are completed within 48 hours. Support industrial format integration such as STEP, DWG, IDF, etc.

High matching specialized fixture sampling: Ensure axial flatness of>10mm spring loaded pogo pins <0.02mm, suitable for sinking plates or back welding structures.

Full process transparent tracking: The process nodes include initial pogo pin assembly, spring assembly, sleeve welding, and coating quality control, with visual tracking and photographic feedback for each step.

Free FMEA analysis: If there are poor electrical connections or PCB warpage compatibility issues during the matching trial assembly of the sample, a complete FA report will be provided.

Quality standards:

The verticality deviation of spring loaded pogo pins is ≤±0.03mm. The overall consistency is ±0.05mm.

Spring life >50,000 cycles @ 2.0A. Consistency of coating thickness Ra<0.1μm.

Through consistency testing of 0.5μm gold + 3μm nickel electroplating, supporting RoHS/REACH files.

Perform mechanical fatigue testing according to IEC 60512-5-2, with SGS report attached.

Delivery of spring loaded pogo pins:

The standard sample shall be sent out within 5 working days, and the initial batch for customized mass production shall not exceed 14 working days.

We have our own precision CNC lathe and assembly production line, with parallel support for sampling and small batch production.

Urgent demand support for 48 hour high-speed samples (limited to structural components).

The delivery schedule will be provided and updated by the project responsible engineer in the form of a Gantt chart.

MOQ (Minimum Order Quantity):

The sample stage supports starting from ≥10pcs.

The standard PIN model MOQ is 200pcs, and the minimum order quantity for customized structural components is 1000pcs.

Structural fine-tuning without the need for mold opening supports a minimum order quantity of ≤500pcs.

Logistics method of spring loaded pogo pins:

Default FedEx Priority international express delivery, with 5-8 deliveries in Europe and America. Include logistics costs when quoting.

We can provide DHL/UPS multi option quotation comparison, with HS code and inspection number attached.

All shipments include batch tracking numbers, material certificates, and factory quality inspection forms.

Qualification of liaison person:

Assign pogo pin connectors/precision hardware engineers with over 10 years of experience to project level clients for coordination.

If it is a medical, military, or aviation customer, it can be equipped with personnel with ITAR experience or engineers holding IPC-A-610/IPC-6012 certification.

Support technical communication in both Chinese and English, and arrange real-time video review and parameter agreement if necessary.

Click: More Catalog

Performance Test of Spring Loaded Pogo Pins

Mechanical performance testing of spring loaded pogo pins:

Insertion force test: According to the axial load standard, ensure a linear displacement response between 0.2 and 1.5N, with a deviation control of ± 5%.

Compression stroke stability test: The length change of the sample with a stroke ≥3.0mm under 100 full strokes shall not exceed ±0.03mm.

Rebound consistency: During 500 compression release cycles, the rebound height of 100% batch samples changed by<± 0.02mm.

Verticality/coaxiality detection: The CNC probe is combined with an imaging system to measure the angle error between the pin and the reference plane, which should not exceed 0.5°.

Electrical performance testing of spring loaded pogo pins:

Contact resistance: Test under rated compression force to ensure <50mΩ and temperature drift control <± 5%.

Current carrying capacity: Conventional 3A current test, accompanied by a 10 minute steady-state recording curve, with a thermal rise not exceeding 30K.

Overcurrent tolerance test: Supports 3.5A 60 second current impact to ensure pogo pin material and coating do not melt or discolor.

Signal integrity testing (optional): Provide TDR reflection testing and insertion loss ≤0.5dB@1GHz for high-speed requirements.

Life and fatigue testing of spring loaded pogo pins:

Mechanical life test: >10,000 full stroke compression cycles, detect changes in contact resistance after every 5,000 cycles.

Coating wear test: For samples with a surface gold layer thickness greater than 0.5μm, SEM cross-sectional analysis is performed after repeated compression.

Fatigue curve of spring structure: a tensile tester combined with high-frequency vibration simulation provides a trend chart of spring failure points.

Environmental stress resistance test: Accelerated aging at 85°C/85%RH for 168 hours, with a contact impedance growth rate of <15%.

Welding compatibility and through-hole compatibility testing of spring loaded pogo pins:

Through hole pin soldering stress test: Simulate the PCB warpage after inserting the pin into wave soldering or reflow soldering, ensuring it is ≤0.2mm.

Through hole wettability test: Under the recommended through hole copper thickness and pad coverage, ensure that the solder climb is ≥95% and there is no virtual soldering.

Analysis of the fit gap between pins and PCB hole walls: Combined with actual X-ray tomography, evaluate the radial gap uniformity and solder coating.

Welding residue test: Ion contamination detection before and after cleaning <1.56μg/cm² NaCl equivalent value.

Material and consistency verification of spring loaded pogo pins:

Tensile and hardness testing of metal materials: conducted in accordance with ASTM B348 and GB/T 4340 standards.

Surface plating layer thickness testing: XRF fluorescence analyzer is used to measure the thickness of gold and nickel layers pogo pin by pogo pin.

Batch consistency testing: Randomly sample ≥10pcs from each batch, record deviations and statistical intervals item by item, and attach traceable records.

Salt spray test: NSS has no coating peeling or corrosion spots for 48 hours or above.

Click: More Catalog

Customization of Spring Loaded Pogo Pins

Structural customization of spring loaded pogo pins:

Support precision machining within the range of 10.00mm~70.00mm for full pogo pin length, with a tolerance control of ± 0.05mm.

Customizable head structure (round head, blade head, groove head, concave point, spherical surface, ellipse, crown, etc.). Tail form (crimping type, direct insertion type, stepped type, reserved welding position type).

Capable of designing non-standard stroke compression springs, supporting eccentric and double elastic structures.

Support special limit mechanisms or customized multi-stage travel, suitable for pin voltage limiting or floating docking needs.

Electrical and functional customization of spring loaded pogo pins:

Support design optimization for different current specifications (0.5A~10A), including plunger diameter, spring stiffness, and electroplating combination.

Low insertion loss head shape can be customized for high-speed signals and matched with TDR simulation.

Supports multi-point grounding/multi pin parallel design, suitable for power redundancy or shielding structures.

Having experience in multi-stage spring impedance matching and seismic strategy design, meeting the reliability requirements of medical and military grade.

Through-hole adaptability of spring loaded pogo pins:

The pin diameter and tail fitting section can be set according to the customer’s PCB process to meet the requirements of through-hole insertion with a hole diameter of 0.30-6.00mm.

Support chamfer design on the plugin end to reduce assembly stress and the risk of PCB through-hole damage.

The tail can be equipped with anti stripping rings, limit shoulders, and solder paste coverage positioning areas. Improve welding consistency and matching of through-hole tension.

Process customization of spring loaded pogo pins:

Capable of secondary processing such as turning, grinding, milling, and embossing, meeting the requirements of complex pogo pin end structures.

Surface treatment supports composite coating combinations such as gold plating (0.1 μ m~5 μ m), nickel base, tin layer, and thick copper.

The spring material selection includes SUS304, SUS631, piano wire, and bainitic steel, supporting anti magnetic/high fatigue/directional elastic design.

Can be encapsulated in T&R format or Tray format to meet SMT/automatic plugin requirements.

Project docking and response:

The engineering docking is the responsibility of engineers with a design background in precision pogo pin connectors of ≥ 10 years. Familiar with standards such as IPC-2221, IEC 60512, UL1977, etc.

All customized projects must complete feasibility assessments and structural diagram recommendations within 48 hours of project initiation.

We can provide STEP, DWG structural diagrams and analysis reports to support internal simulation and whole machine assembly verification for customers.

If cross departmental technical collaboration is involved, support the establishment of joint project windows. Perform periodic version confirmation and trial production integration.

Click: More Catalog

FQA

Can spring loaded pogo pins be inserted into copper plated PCB through holes ≥3mm without causing board warping or soldering voids?

It can be achieved. We support the design of pin tail step matching, and the size and tolerance control of the insertion section are based on the recommended values of IPC-2222. At the same time, the tail limit structure is used to avoid stress concentration in the welding area, which has been stably applied in 1.60mm thick PCBs.

Can spring loaded pogo pins withstand repeated insertion and extraction or impact vibration without loosening or pogo pin displacement after compression installation?

The matching accuracy between barrel tail and the through-hole is controlled within the range of ±0.02mm. The pressure holding force can reach 50N, and it has passed simulated transportation, drop experiments, and 10Hz~500Hz 3-axis sweep vibration tests. No structural displacement occurs after assembly.

Will continuous power on of 3A or more during full stroke of spring loaded pogo pins cause abnormal heating or spring failure?

can’t. All current path components are made of low resistance copper alloy material and treated with ≥ 0.5μm thick gold +3μm nickel composite electroplating. Under 5A steady-state operation, the heat rise is ≤ 20℃. The selection of springs is based on the optimization of thermal fatigue curves, with no attenuation of force values after continuous power on testing for more than 100 hours.

Can multiple Spring loaded pogo pins be modularly arranged and installed to ensure pitch tolerance and end face coplanarity?

Of course I support it. It can be designed as a modular carrier array structure, with a pitch support of ≥1.00mm and a tolerance of <±0.05mm. The coplanarity of the end face is controlled by fixture reference pressing and maintained within ±0.03mm. Suitable for multi-point synchronous contact or board to board elastic connection structures.

Is there a verifiable batch consistency record and material traceability path for spring loaded pogo pins?

Yes. All spring loaded pogo pins are encoded with marked source material, machining, and assembly batch information. Support the export of batch data packages throughout the entire process (including XRF material testing reports, coating thickness reports, and compression fatigue spectra). Meets ISO 9001 and industrial grade traceability system.
